LED Under Cabinet Light, Plug in 12 Inch Kitchen Counter Panel Light, Linkable Easy Installation, 6W 480Lm Stepless Dimmable, 5X Lighting Colors 3000K- 5000K CRI 90+ ETL Listed Item NO.: EN-C006-01

US$ 36.00

Size

Shipped From: China United States

Quantity: Stock ( 0 )

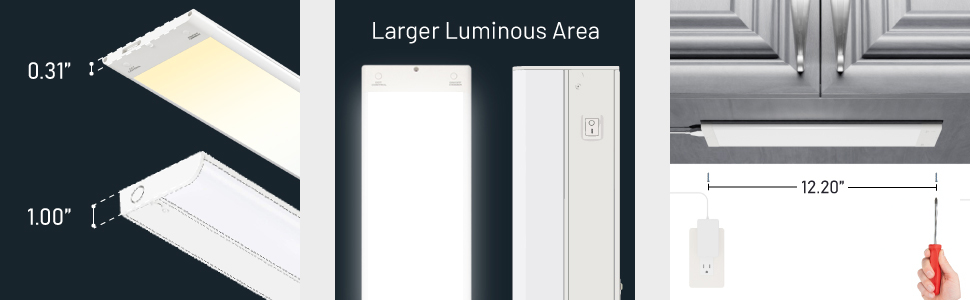

【LED Kitchen Lighting】Dimension of lamp: Length 318X 100MM (12.52X 3.94inch), super thin thickness is only 8MM (0.31inch). 1X LED lamp, 1X 56CM (22.04inch) wire connector, 1X hard connector, 1X 1.8M (70.86inch) power cord with American power plug, 2X metal screws are included for easy installation
【Energy Saving】48 of newest technology SMD2216 LED as lighting source, low power consumption 6W provides maximum 480Lm brightness and no flickering CRI 90+ lighting to make sure the objects under lighting seems as the most realistic color
【Dimmable and Memory】Functional ON/ OFF dimmer switch on lamp body for easy operation. Short pressing switch to turn ON/ OFF lamp immediately, then long pressing switch to adjust the brightness steplessly from 5%~100%. The lamp has memory function to keep brightness same as the level before turning off
【CCT Control and Memory】Lighting color selectable switch on lamp body for easy operation. Short pressing switch to adjust the lighting colors from 3000K- 3500K- 4000K- 4500K- 5000K. The lamp has memory function to keep lighting color same as the level before turning off
【Connectible Lamps】Alumium lamp frame with 4 pins connectible structure. Several lamps can be connectible by hard connector or cable connector to work in one group with one power adapter, each lamp can be controlled independantly. The maximum load of power adapter is 24W, the power sum of all lamps in one group should not excee 24W

Product Name	LED Under Cabinet Light, Plug in 12 Inch Kitchen Counter Panel Light, Linkable Easy Installation, 6W 480Lm Stepless Dimmable, 5X Lighting Colors 3000K- 5000K CRI 90+ ETL Listed
Item NO.	EN-C006-01
Weight	0.5 kg = 1.1023 lb = 17.6370 oz
Category	LED Cabinet Lights
Tag	Kitchen Light , LED Under Cabinet Light , LED Undercabinet Light , Under Furniture Light , Hardwired LED Kitchen Light , Under Counter Light
Brand	ENUOTEK
Creation Time	2022-03-30

Installation Method (The below installation process may require two people to complete):

1. Use the correct screwdriver to fix two metal screws through the lamp frame on the wooden furniture. The holes pitch is 310MM (12.2inch).
2. Use hard connector or wire connector to connect another lamp, then install another lamp on the furniture by metal screws.
3. Connect lamp with power cord, plug in power plug in the socket, turn on lamp to enjoy the functions.

Material: White painted aluminium lamp frame, fire resistant plastic PC end covers, plastic PC and PMMA diffuser
Dimension: Lamp- length 318X 100MM (12.52X 3.94in), wire connector- connection length 56CM (22.04inch), power cord- length 1.8M (70.86inch)
Voltage: Input AC100~240V 50Hz/60Hz, output DC12V maximum 2A
Lighting Source: 48X SMD2216 LED
Power: Maximum 6W
Lighting Color: 5X CCT adjustable from 3000K- 3500K- 4000K- 4500K- 5000K
Lighting Brightness: Maximum 480Lm
Color Rendering Index: CRI>90
Beam Angle: 120°
Dimmable Yes/ No: Stepless dimmable
Waterproof Rate: IP20, not waterproof
Package: 1X LED lamp, 1X wire connector, 1X hard connector, 1X power cord with American power plug, 2X metal screws, instruction paper
